GEAR MACHINES
TOS Fo-6 Gear Hobbing Machine Specifications: TOS FO-6 Gear Hobbing Machine,
Maximum gear diameter: 600 mm, Module : 6
With complete Gear set, Tangential Attachment.
CLICK HERE TO SEE VIDEO OF THIS MACHINE
HOFLER BHS-1000 GEAR GRINDER 1000mm, Model: H-1002Specs : H1002 Generator Gear Grinder, YOM circa 1984. For full specifications see lot description
Max Grinding Diameter (A) 1000mm (39.37")
Max Spur Grinding Length (B) 550mm (21.653")
Max Left Helix Grinding Length (C) 485mm (19.094")
Max Right Helix Grinding Length (D) 479.5mm (18.878")
Min Height Above Table for Spur Grinding (E) 475mm (18.701")
Min Height Above Table for Left Helix Grinding (F) 435mm (17.126")
Min Height Above Table for Right Helix Grinding (G) 563mm (22.165")
Table Diameter (H) 740mm (29.134")
Table Bore Diameter 200mm (7.874")
Min Grinding Diameter 49.78mm (1.96")
Max Table Load 3900kg
Helix Angle Spur-35"
Number of Teeth 12-375
Max tooth size 1 DP
Min tooth size 12.75 DP
Grinding wheel dia 400mm (15.75")Max - 300mm (11.81") Min
With a lot of accessories.
TOS OH-4 GEAR shaperTOS OH-4 Gear Shaper Machine, Maximum ger diameter : 400 mm, Module : 4

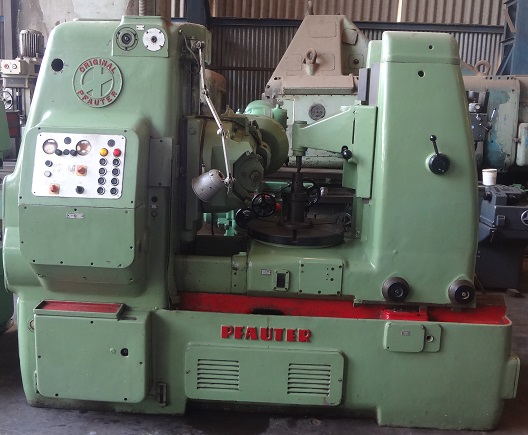

PFAUTER P-630 Gear HobingMaximum gear diameter: 800 mm, Module : 6
With complete Gear set

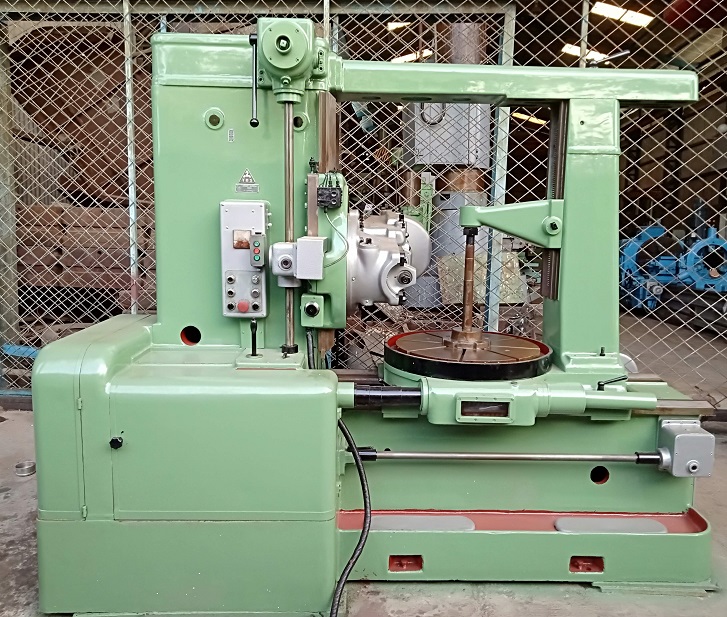

TOS FO-10 Gear HOBBINGMaximum gear diameter: 1000 mm, Module : 10
With complete Gear set
